Why Do Roof Valleys Leak And How Should They Be Installed

Quick Answer

Roof valleys often leak when shingles are installed incorrectly, nails are placed too close to the valley centerline, or the valley lacks proper waterproof underlayment. However, leaks that appear at the valley may actually originate higher on the roof where water enters the roofing system and travels downward before becoming visible.

Visit our Roofing Advice Library.

This article is part of the roofing advice library at WA Roofing Expert where homeowners can learn about roof leaks, roof replacement, flashing problems, and gutter issues.

Why Roof Valleys Handle So Much Water

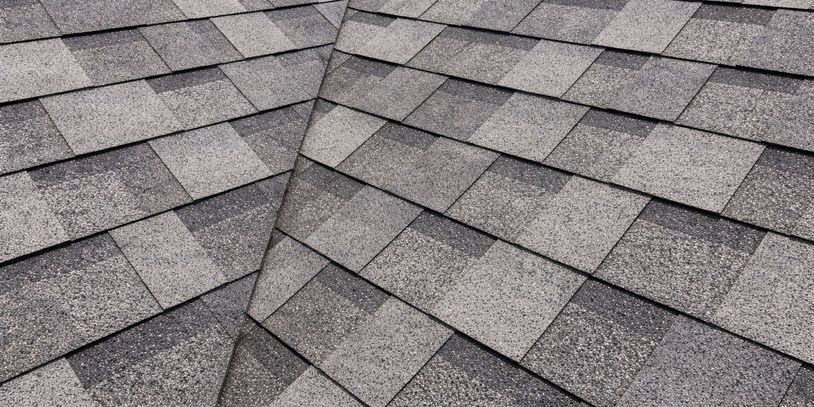

A roof valley forms where two roof slopes meet, creating a channel that directs rainwater and melting snow down the roof.

Because valleys collect water from two roof sections at the same time, they carry more water than most other areas of the roof. During heavy rainstorms, large volumes of water are concentrated in the valley, which makes this area especially vulnerable if it is not installed properly.

For this reason, valleys require additional protection beneath the shingles and careful installation to ensure water flows safely down the roof.

How Roof Valleys Should Be Installed

Before any shingles are installed, a waterproof membrane such as ice and water shield should be applied directly to the roof decking along the entire length of the valley.

This membrane acts as a secondary barrier that protects the roof deck if water ever gets beneath the shingles. Ice and water shield is installed directly on the decking and typically extends several feet on both sides of the valley to provide additional protection.

Once the valley membrane is installed, shingles are installed so water can flow freely down the valley without obstruction.

Roofing nails should always be placed well outside the valley centerline, typically about twelve inches away from the center of the valley, to prevent water from reaching nail penetrations.

When the underlayment, shingle placement, and nail spacing are installed correctly, a roof valley can safely handle heavy rainfall and melting snow without leaking.

Why Valley Leaks Are Often Misdiagnosed

One of the most misunderstood aspects of roof leaks is that the location where water appears inside the home is not always where the leak originates.

Water can travel beneath shingles, along underlayment, or across roof decking before it becomes visible. Because roof valleys collect water from two roof slopes, leaks that originate further up the roof often settle in the valley area.

This can make the valley appear to be the source of the leak even when the real problem started somewhere above it.

For example, leaks may originate from:

damaged shingles higher on the roof

flashing around chimneys or walls

plumbing vent penetrations

loose roofing nails

deteriorated roofing materials

If the true source of the leak is not identified, replacing the valley alone may not solve the problem.

Conclusion

Roof valleys play an important role in directing water safely off the roof. Because they carry large volumes of rainwater and melting snow, they must be installed with proper underlayment, correct shingle placement, and careful nail spacing.

While valleys are often blamed for roof leaks, the true source of the problem may sometimes be located further up the roof where water first enters the roofing system. Proper roof inspection and accurate diagnosis are essential for identifying the real cause of a leak and making a lasting repair.

Expert Roof Repair and Replacement in Your Area

In many situations, a roof repair is all that’s needed to fix leaks or localized damage. But when a roof has aged or shows widespread deterioration, a complete roof replacement is usually the best option. Valley leaks, in particular, can be difficult to diagnose because water often travels along the roof before appearing inside the home. Infrared roof leak detection can help identify hidden moisture in and around roof valleys, revealing the true source of the problem and whether the issue is isolated or part of a larger installation defect. WA Roofing Expert specializes in roof repair, roof replacement, infrared roof leak detection, seamless gutters, and downspouts throughout King County and Snohomish County Washington.
